Visual Studio Code extension

Note

This feature is in beta. If you'd like to be included in the beta, contact earlyaccess@split.io.

This guide explains how to use the Harness FME Visual Studio Code (VSCode) extension to interact with feature flags from within VSCode. This capability allows you to view critical flag information without leaving your IDE. With this extension you can:

  • View feature flag definitios by environment
  • Sort flags alphabetically, by rollout status, and creation date
  • Hover over a feature flag to view information such as description, tags, etc. within a tooltip
  • Find code references for a given flag

Installing the Harness FME VSCode extension​

To install the Harness FME VSCode extension, do the following:

  1. Open the Split for Visual Studio Code extension in Visual Studio Marketplace.
  2. Click the Install button. The extension installs.

Configuring the VSCode extension in Harness FME​

To connect Visual Studio Code to your Harness account, do the following:

Authentication token

A Harness admin needs to add the VSCode extension into the Harness FME marketplace and generate the token that you need to complete this section. Contact your Harness admin for a copy of the token.

  1. From the left navigation, click the profile button at the bottom, click Admin settings, and then Integrations. The Integrations page appears.
  2. Locate the VSCode selection and click Add.
  3. Save the integration and navigate back to the newly created integration. The token displays. Copy the token to authenticate the extension.
  4. Open your Visual Studio editor and download the Split extension.
  5. Once you have the extension installed, click the Split icon in the sidebar. The Authenticate button appears along with a field to enter your Harness authentication token.
  6. Enter the authentication token you copied in the field and click the Authenticate button.
  7. Paste the token into the Extension field at the top of VSCode extension. All your feature flags within your Harness projects now display within the extension.
tip

To reconfigure the extension at any time, run the “Split: Authenticate” command from the command palette by using one of the following commands:

  • For PCs, use ctrl+shift+p
  • For Macs, use ⌘+shift+p.

All your Harness FME projects are now available within VSCode.

Using Visual Studio code extension​

The following explains what you can do within the extension.

Switching between Harness FME projects​

Click the switch project icon to switch between your Harness FME projects. A list of your Harness FME projects appears. When you select a different project, it displays all the FME feature flags in the selected project.

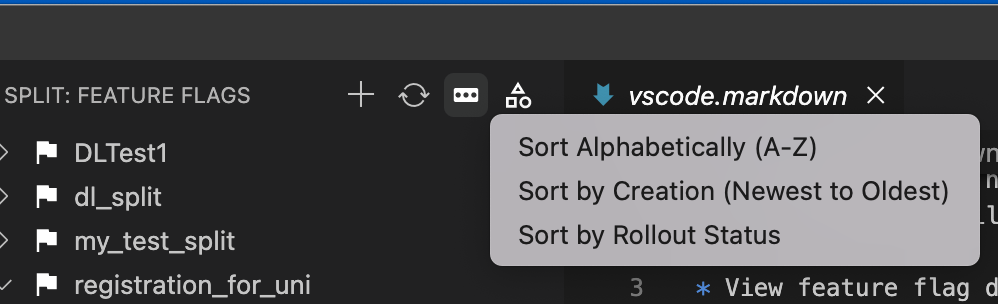

Sorting feature flags in your Harness FME project​

Click the sort icon to sort your feature flags. You can sort your flags:

  • Alphabetically. Sorts your flags from A to Z.
  • By creation date (newest to oldest). Displays the date of when the flag was created when you hover over a feature flag.
  • By rollout status. Shows how many feature flags are in a particular status. For example, if you have 12 flags in Pre-production, that number displays along with the status of the flags.

Refreshing data​

Click the refresh icon to refresh the data in your feature flags. Because the extension does not automatically refresh data, it’s recommended that you periodically refresh the data manually.

Working with feature flags​

The following describes how to work with feature flags in VSCode.

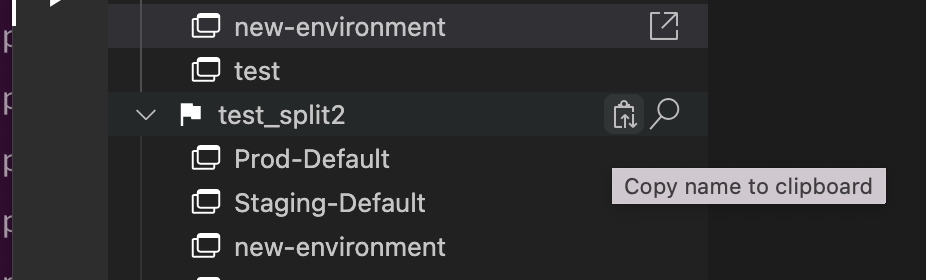

Copying the feature flag name​

To copy the feature flag name, hover over the desired flag and click the copy icon. The name is copied to clipboard.

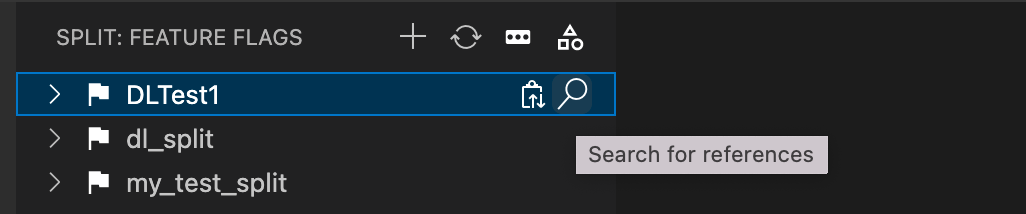

Searching for code references​

You can search for code references in one or more files. When you do a search, it displays the names of the files that contain the code reference and the location within the file.

Once displayed, you can either view the code itself or a summary of the code.

Expanding feature flags​

Expanding a feature flag in the tree view allows you to see a list of environments. Clicking each environment opens a read-only editor displaying the feature flag definition for the given environment. If you have no targeting rules that are defined for that environment, a note appears at the top of the screen indicating that no definition is found for the selected environment.

Additional capabilities​

The following are actions you can perform within VSCode.

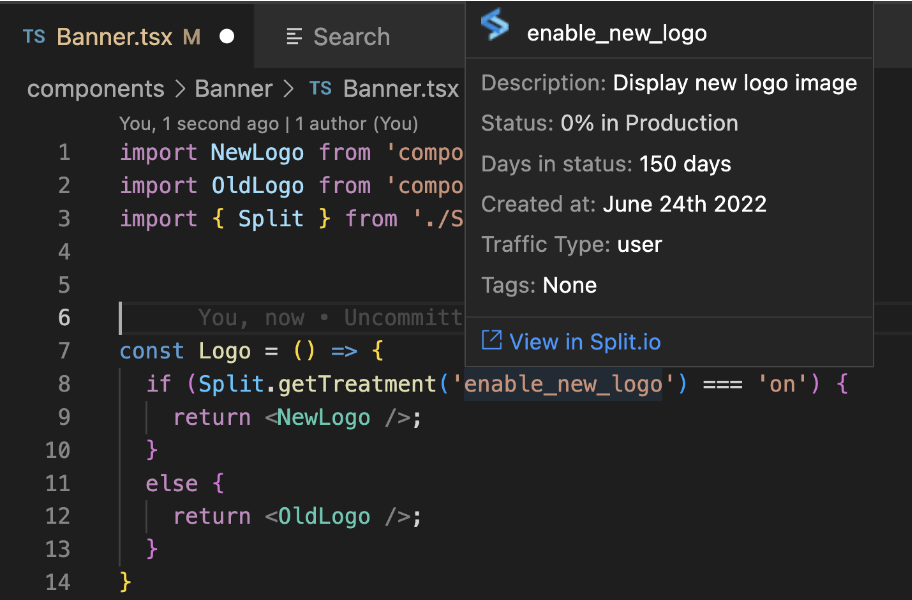

  • Recognizes feature flags in code. Within the code itself, you can hover over any strings within quotes and if it recognizes it as a flag from your list, it displays information about the flag, for example, the description, status, traffic type, etc. You can also view it within Harness.

    Note

    If you change the feature flag in Harness FME, you need to refresh your data to display the changes.

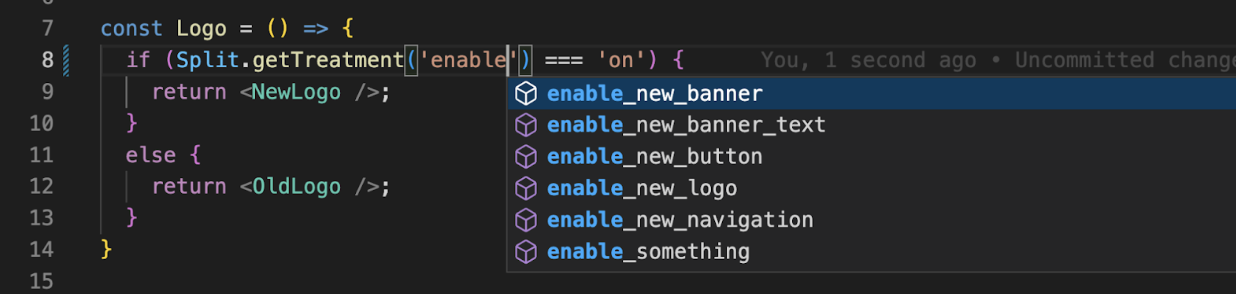

  • Automatic completion. When you start typing a string, a list of matching feature flags names automatically appears.
